SPG SOLAR SCOOTER from world-class scooter maker
Product Dimension: L 1350mm*W 590mm*H 1250mm

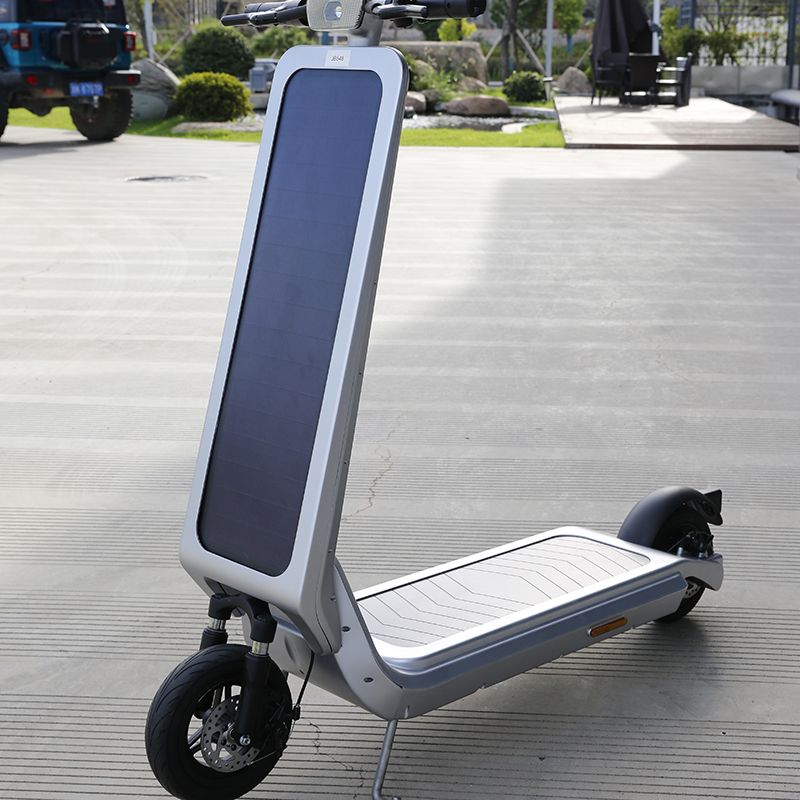

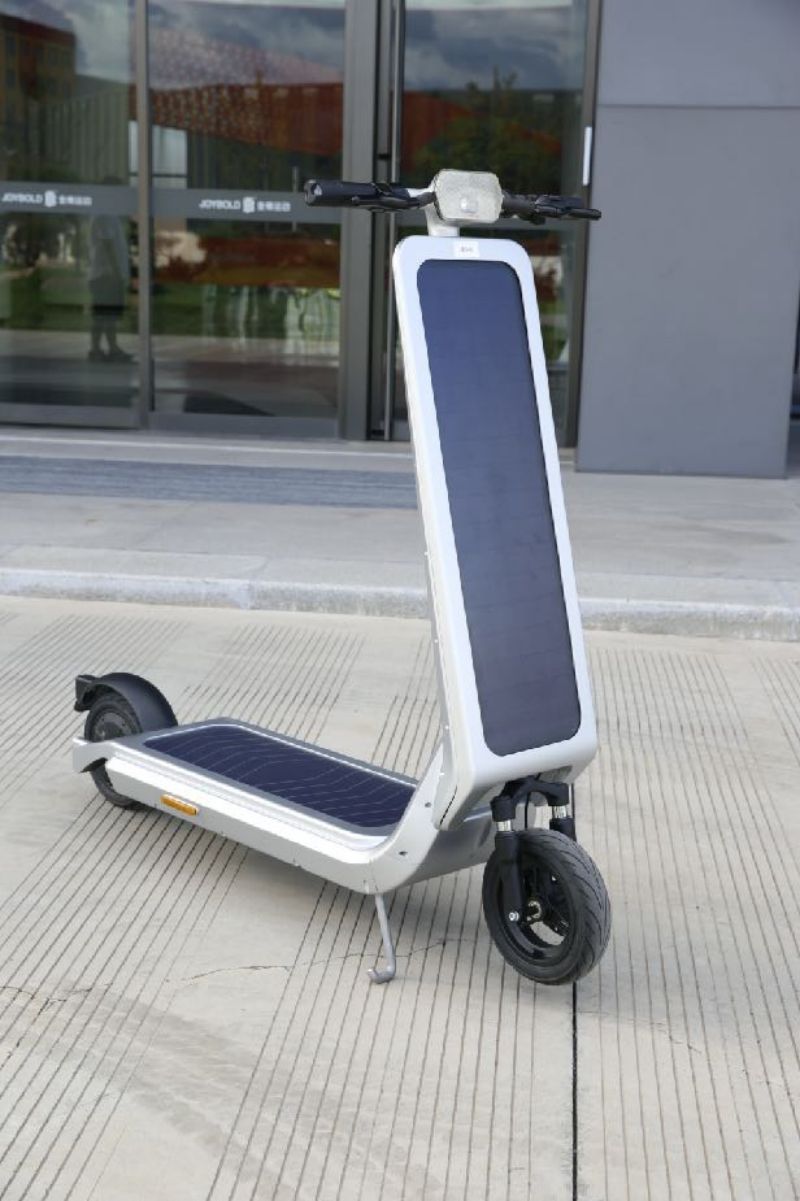

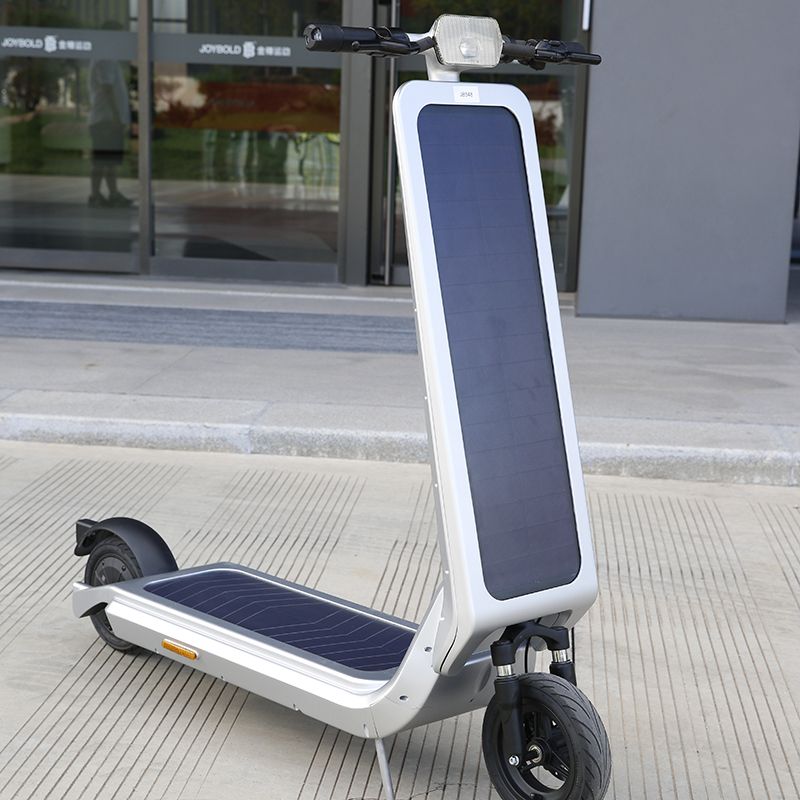

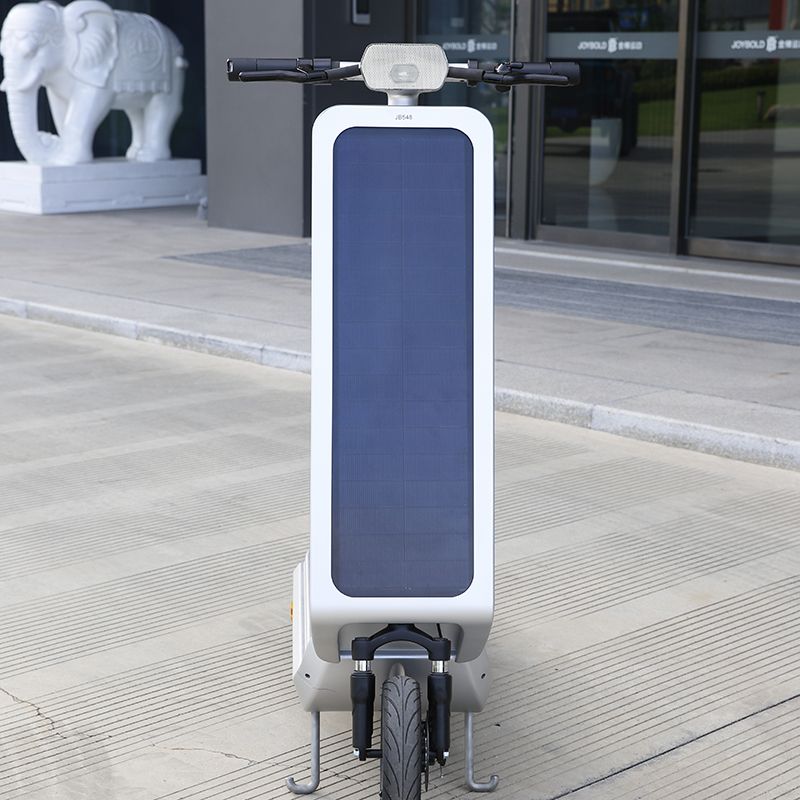

Left-front view

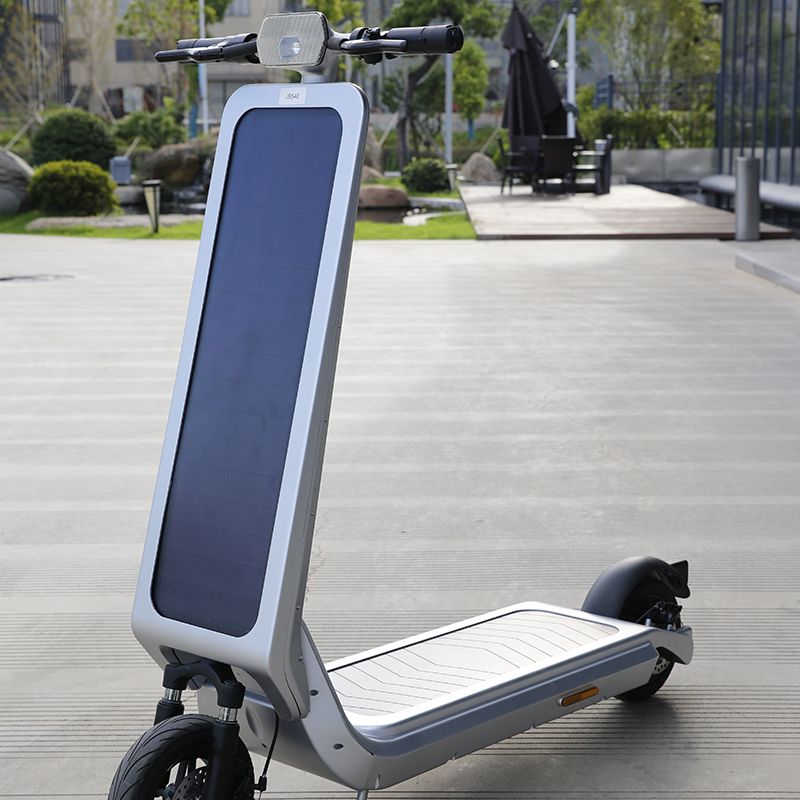

Right-front view

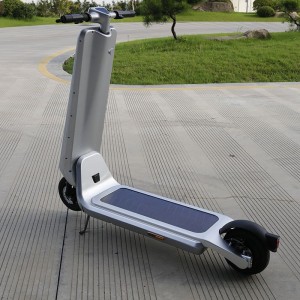

Left-rear view

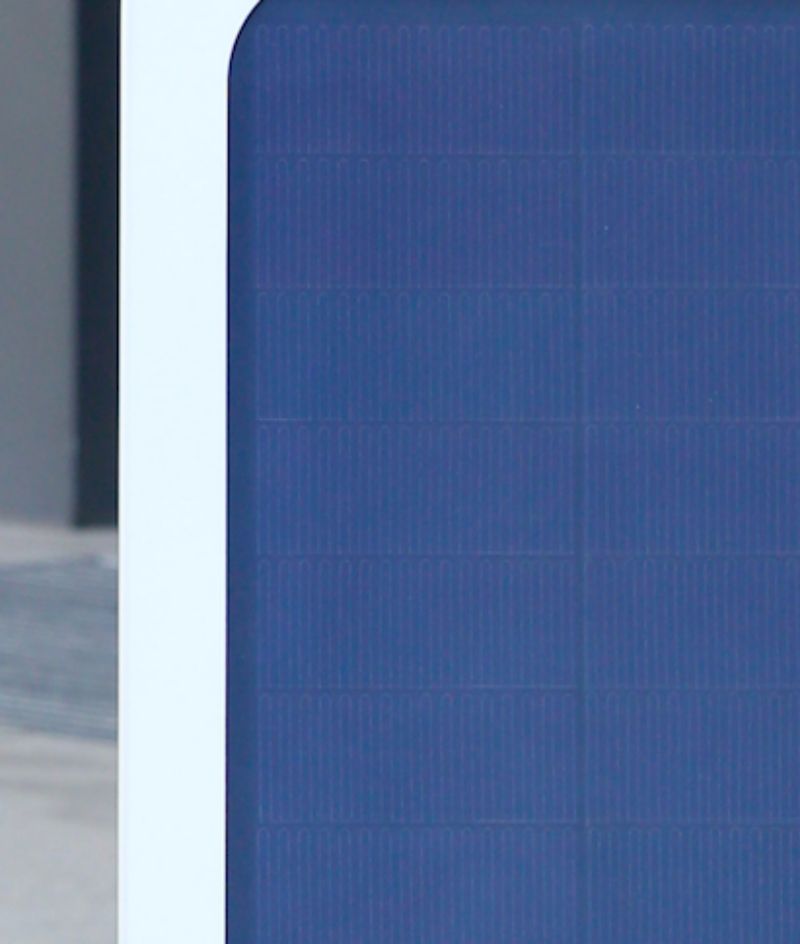

Front Solar Panel is of Smooth Finish With CIGS Thin Film Solar, which is flexible and unbreakable thin film. Plus, it is more eco-friendly than traditional silicone solar.

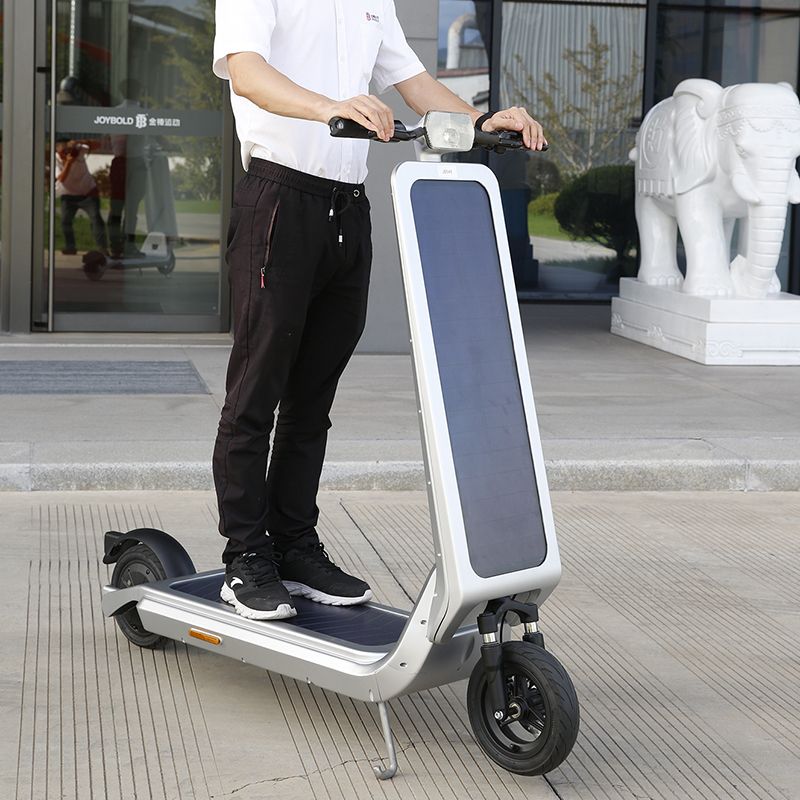

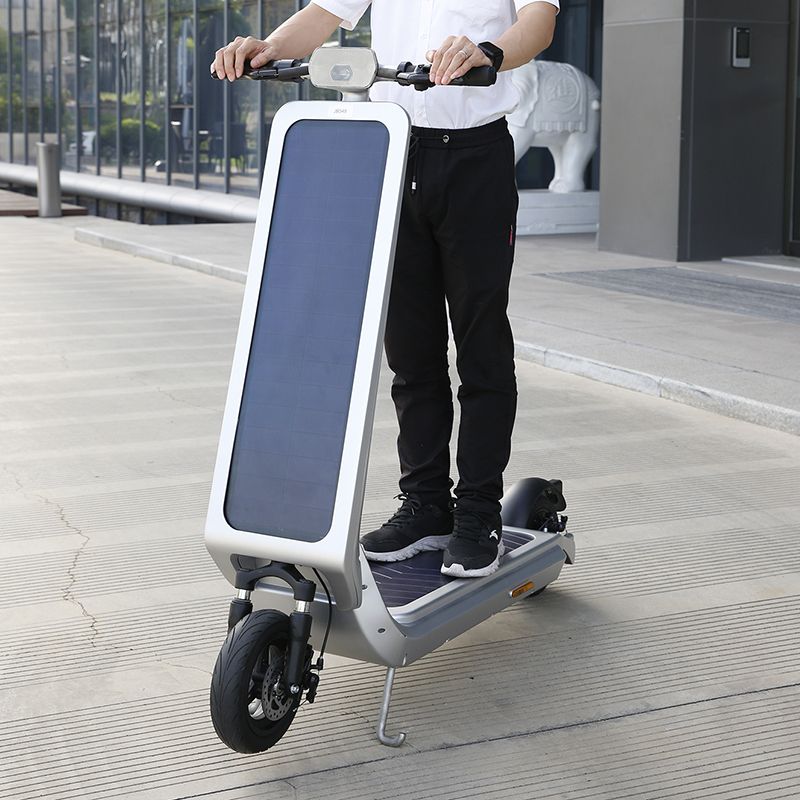

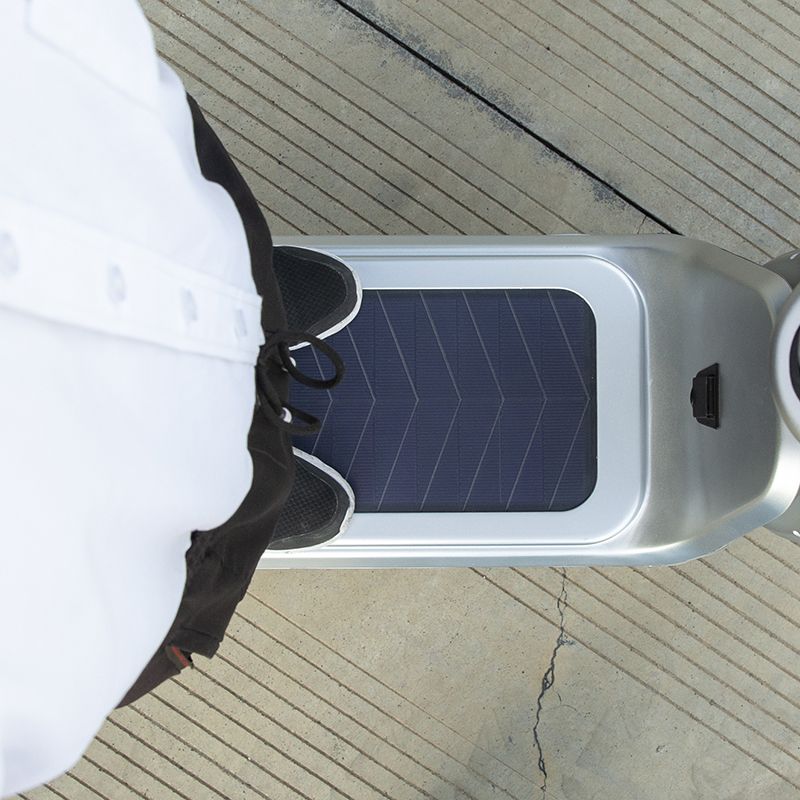

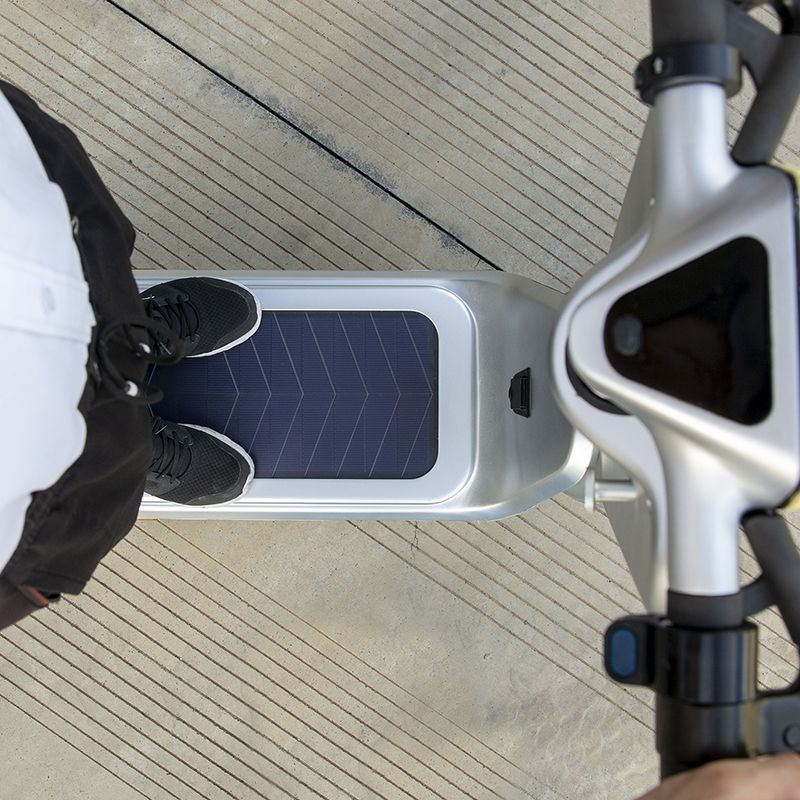

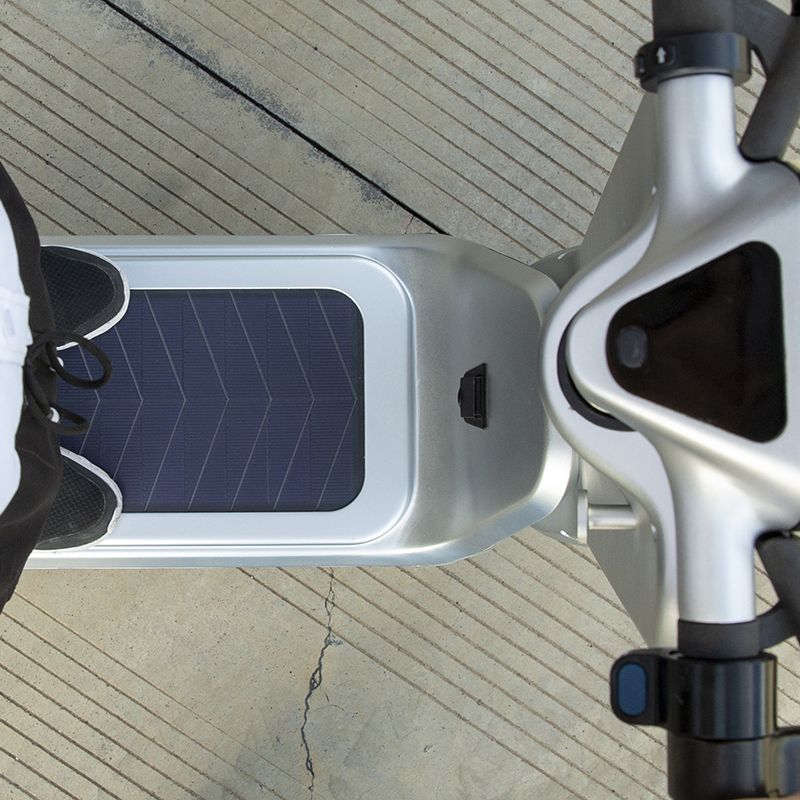

Bird View with rider standing

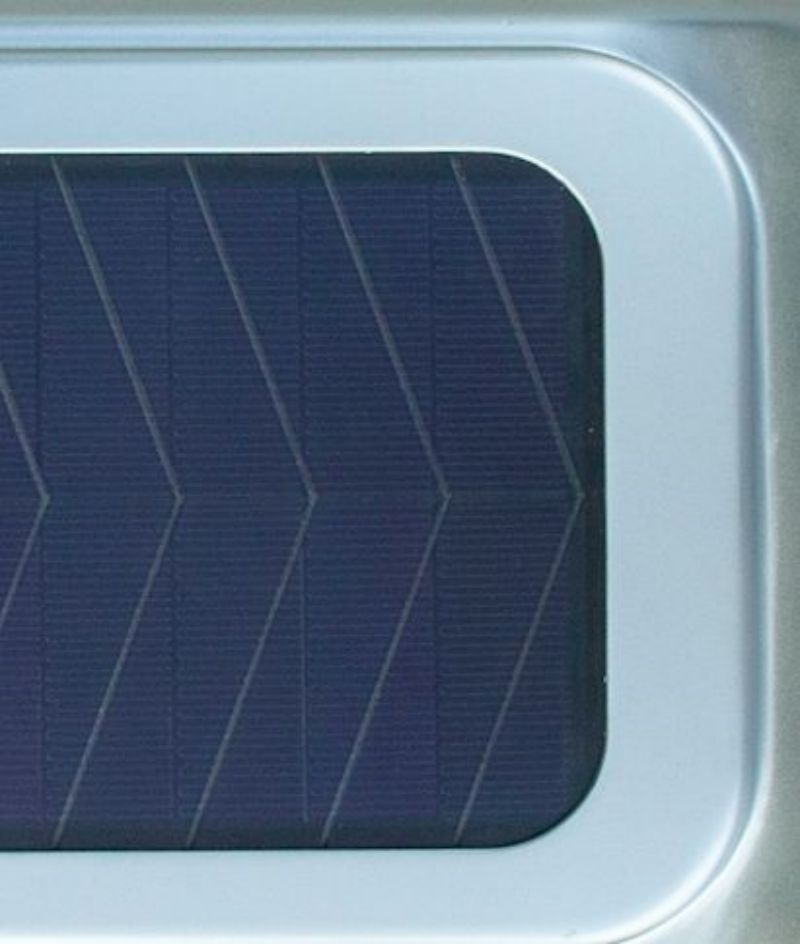

Standing Solar Panel is of matte finish with anti-slippery design. We use CIGS Solar, which is unbreakable!

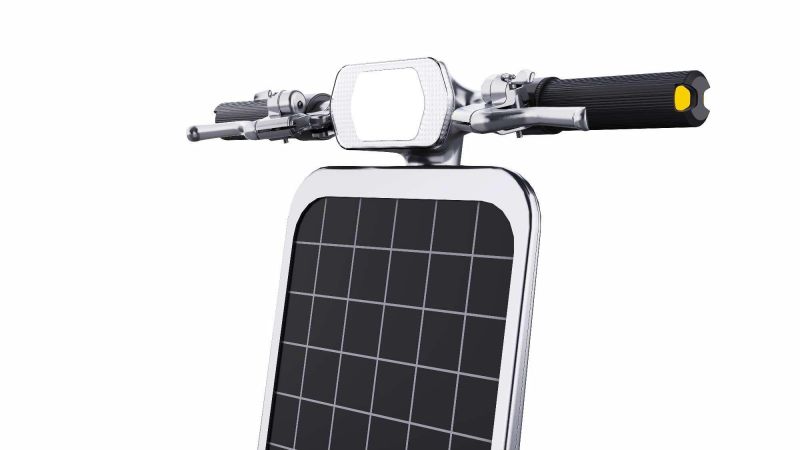

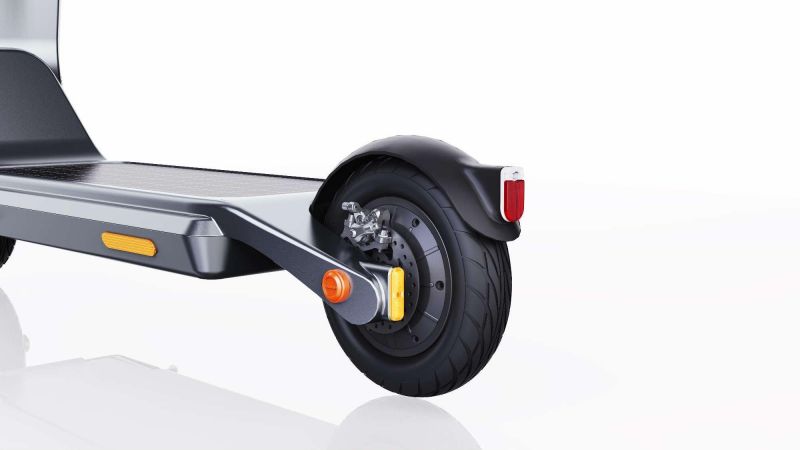

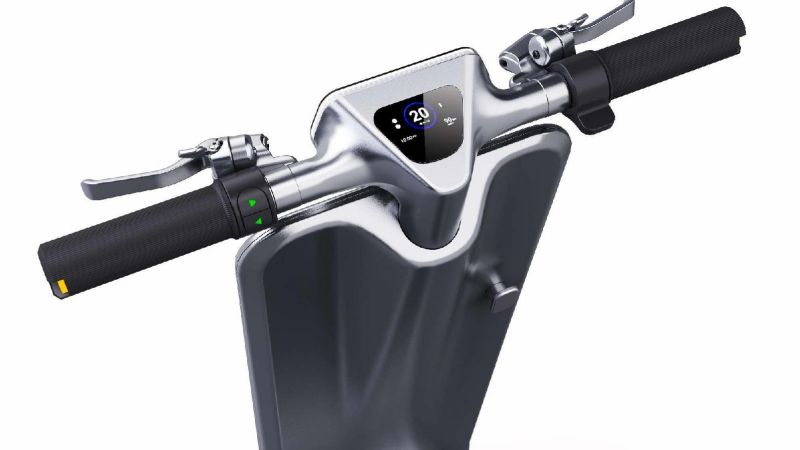

Detail Display
Detail Display
Product Specifications
| Item | Specification |
| Dimensions | L 1350mm*W 590mm*H 1250mm |
| Weight | ~36KG |
| Material for Body | die-cast aluminum |
| Maximum Speed | 25KM/H |
| Range | 40KM+15KM (of maximum solar) |
| Maximum Gradient | 12% |
| Adapted Terrain | Asphalt/flat pavement,Obstacles<1cm, Gaps <3cm |
| Operating Temperature | 0~40℃ |
| Storage Temperature | -20~50℃ |
| IP Rating | IP54 for vehicle, IPX6 for electrical parts |
| Brake Mode | Front and rear dual disc brakes+E-ABS |
| Braking Distance | Dry pavement 10m for single brake |
| Tire Size | 10" |
| Tire Material | pneumatic tire |
| Driving Mode | Throttle |
| Maximum Load | 120KG |
| Recommended Age | 18+ |
| User Height | 150~200 CM |

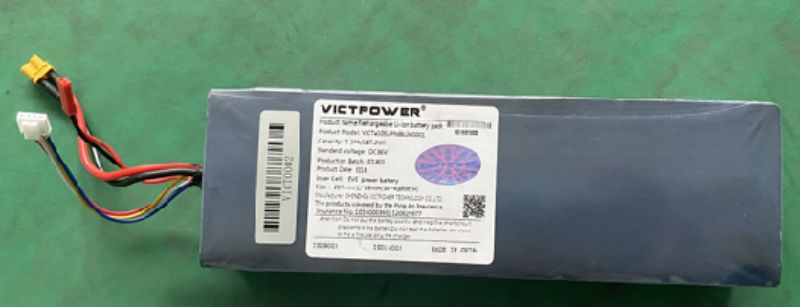

| Lithium battery pack + Solar Module | ||
| Picture | Model | 18650/3200mAh |
 |
Cells Qty. | 40 cells |
| Battery Capacity | 460.8 Wh | |
| Solar Maximum Daily Power | 186wh | |
| Rated voltage | 36VDC | |
| Max voltage | 42VDC | |
| BMS | Over-heating, short circuit, over-current and over-charge protection | |
| Motor | ||
| Picture | Size | 10 inch pneumatic tire |
 |
Rated power | 400W |
| Max power | 600W | |
| Rated voltage | 36V | |
| Max torque | 16N.M | |
Delivery Schedule
| Leadtime for mass production | |
| Mold Leadtime | 8 weeks |
| Trial production for approval & certification | 8 weeks |
| Mass Production | 8 weeks after down payment |
| Mass Delivery in | 6 months |
From a joint venture of World-class Solar Vehicle Company with Scooter Maker
Proud ODM Factory to BIRD, Razor, Decathlon, and Micro. Proud supplier of Walmart、K-mart、Tesco、Argos.
Proud solar system to vehicle system of ASF, Japan, and Disneyland, Shanghai. Patent owner of Solar Modules for Vehicles / Designer of commercial solar carts. We are solar system supplier to and also distributor of this solar scooter.
